Model Structure

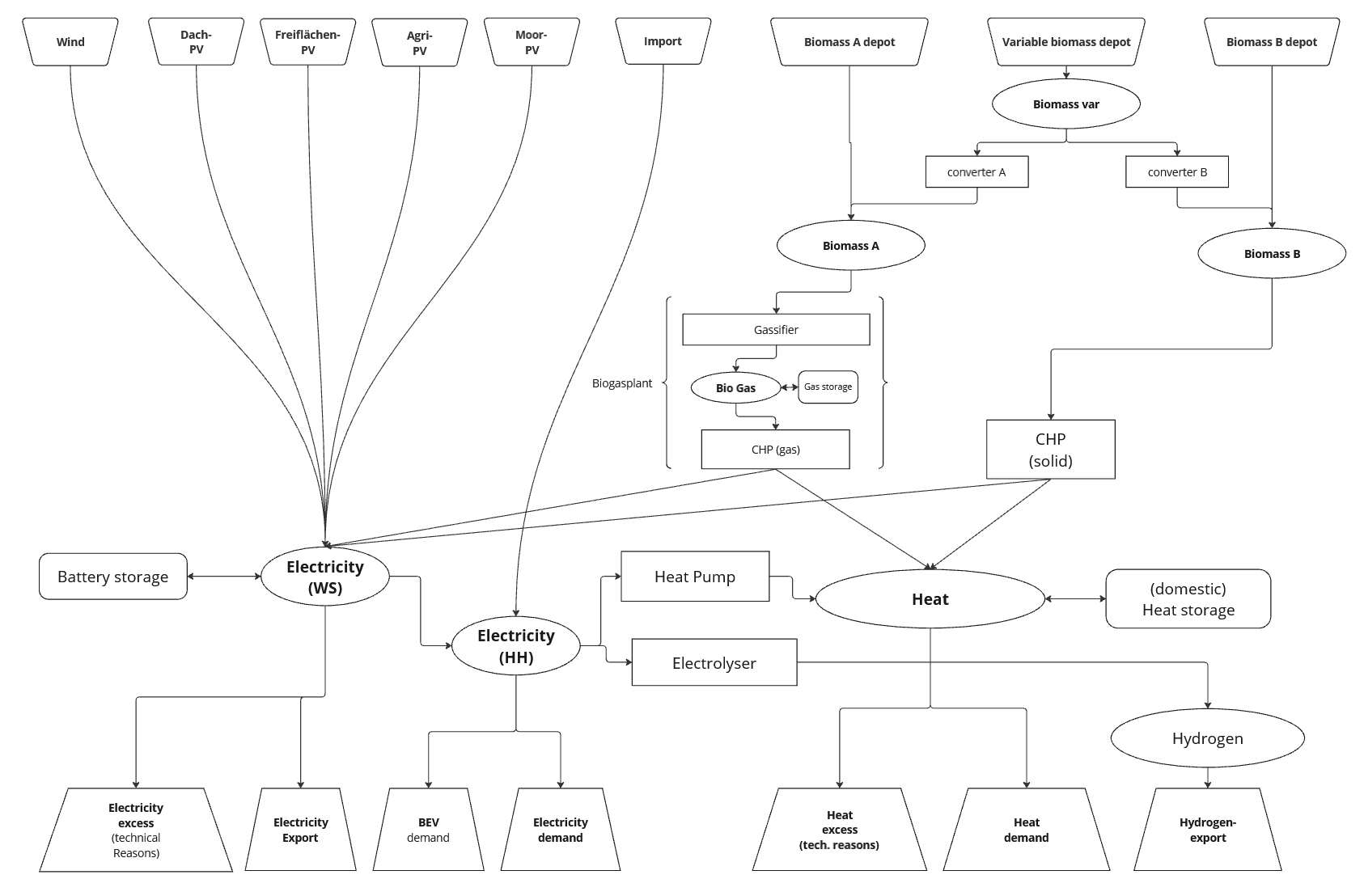

The current energy system looks like this:

full energy system model

Data for all components and feedin and demand inputs for simulating the energy system using oemof.solph can be found within the ReEnAct_web repository at reenact/media/oemof/scenario_es

Energy carriers - Bus name (in ES Model)#

  • Electricity (wholesale market) - el
  • Electricity (end customer) - elec
  • Heat - th
  • Biomass B (direct use in solid CHP) - sb
  • Biomass A (for Biogas Plant) - bm
  • Biomass var(-iable) - bv
  • Biogas (Biogas Plant internal) - bg
  • Hydrogen - hy

Components - Component name (in ES Model)#

  • Wind - wind
  • Dach-PV - pv_roof
  • Freiflächen-PV - pv_ground
  • Agri-PV - pv_agri
  • Moor-PV - pv_marsh
  • Import - EL-import
  • Battery Storage - battery
  • Biomass A Depot - SB-depot
  • variable Biomass Depot - bio-new
  • Biomass B Depot - BM-depot
  • Converter A - BV-variableA
  • Converter B - BV-variableB
  • Biogas plant: Gassifier - BM-gassifier
  • Biogas plant: Gas Storage - BG-storage-bga
  • Biogas plant: CHP (gas) - BG-backpressure
  • CHP (solid) - SB-backpressure
  • Electricity Excess - EL-excess
  • Electricity Export - EL-export
  • BEV Demand - mobility
  • Electricity Demand - electricity
  • Heat Pump - EL-heating
  • (domestic) Heat Storage - TH-storage-home
  • Heat Demand - heat
  • Heat Excess - TH-excess
  • Electrolyser - electrolyser
  • Hydrogen Export - HY-export

Units#

  • [Energy] = MWh
  • [Power] = MW
  • [Emissions (CO2 equiv.)] = Tonnes
